HYPERION EOS CHARGERS MAY 11 2015: New firmware v5.94 has been released for select EOS chargers! The new v5.94 Firmware replaces LI-ION Mode with HVLI mode for 3.8V/cell Lithium Packs, such as the awesome new Hyperion G6 HvLi Series. EOS Control & Date Suite Software for Win PC ECDS Enables: * Full Control of the Charger Via PC * Editing/Storage/Uploading of Memory Positions to and from the Charger * Rich Data Logging and export features * "Tagging" of packs for long-term analysis * Customizable Alarms * And more..... Hyperion is already known as a world-wide leader in advanced battery chargers, and we continue to push development forward. The newest 0720i NET3 and 0720i DUO3 provide a wide feature set, and unmatched power to suit 6C-chargeable batteries like our new G6 HvLi Lithium Packs. And with built-in USB port and supplied cable, you'll be able to install new firmware updates for added features and performance, as they become available. Safety, features, power, value: Get the best.

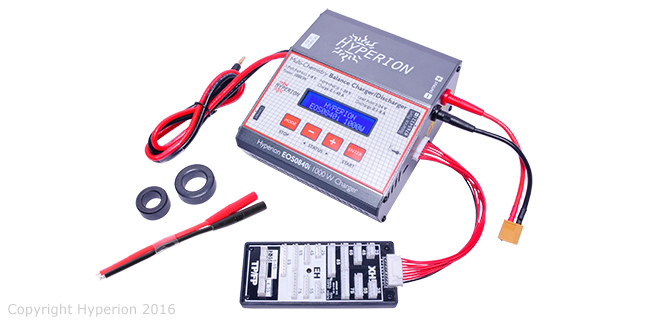

	NEW! Hyperion EOS 0840i 8S DC Charger (1000W Output) The Hyperion EOS 0840i 1000W DC Balance Charger/Discharger is for users demanding a “workhorse”, high-output DC charger capable of huge wattage for quick charge times. EOS 0840i DC (dc input) 11V~30V DC (40A, 1000W max charge) * “EOS PC Tool” Charger Control Software * EOS Connect WiFi Module (Sold Seperately) * 10 Memory slots for batteries * CYCLE mode for LiFePO4 and LiPo * Terminal Voltage Control (TVC) * 2-8S Multiple Balance Board Adapter * Battery Internal Resistance Meter * LiPo Battery Meter The EOS0840i can charge up to 8S Lithium batteries with a maximum current of 40A. The EOS0840i is compatible with HvLi batteries, meaning now your capable of charging the next generation of G6 HvLi 4.35V Batteries. Not only does the Hyperion EOS 0840i offer a super high charge rate capability, it also boasts great features such as Store Mode, Cycle Mode, and 10 memory profiles and high power balancing.
	EOS 0720i NET3-AD (ac/dc) The EOS AC/DC is a major power advance for convenient charging at home or at the field. EOS 0720i NET3 AD (ac/dc input) 10.5V~29V DC (20A, 150W max charge) 100V~240V AC (20A, 90W max charge) SYNC Charge up to 2x7S for max 14S Flightpacks at 300W max. See explanation of SYNC MODE charging below. * 12-Bit Balance Circuit Resolution for superb accuracy * Built-In USB DataPort and supplied USB cable * Hardware support for EOS Control & Data Suite PC Software * 20 Memory slots for batteries * CYCLE mode for LiFePO4 and LiPo * Convenient DC Cord Storage on charger bottom (see pics left) * HP/PQ and JST XH balance adapters included (+JST EH for EU) The NET3-AD is one powerful AC/DC charger. With AC input, it can charge a 5000mAh 2S car pack at more than 2C (~11.5A) and on DC nearly 4C (~19A). Or on AC a 3S 2100mAh pack at can hit almost 4C, and on DC input up to 6C! Note: Versions are offered for Japan, USA, and EU markets, with appropriate AC power cables. EU version also adds EH adapters and has a higher retail price. (the US version charger set is pictured here)

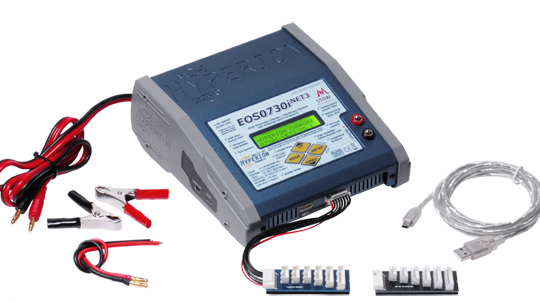

	AWESOME CAR and LARGE FLIGHT PACK CHARGER! EOS 0730i NET3 DC INPUT 10.5V~29V 7S 550W 30A max Charge!, 80W/10A max Discharge SYNC Charge up to 2x7S for max 14S Flightpacks at 51100W max. See explanation of SYNC MODE charging below. *NET3 Changes vs. Previous 0720i NET:* * 12-Bit Balance Circuit Resolution for superb accuracy * Built-In USB DataPort and supplied USB cable * Hardware support for EOS Control & Data Suite PC Software * 20 Memory slots for batteries * CYCLE mode for LiFePO4 and LiPo

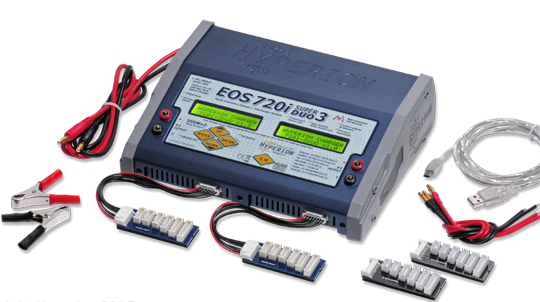

	SUPER POWER, DUAL CONVENIENCE EOS 0720i SUPER DUO3 DC INPUT 10.5V~29V 7S Max, 500W 20A Max Charge Per Port 50W+50W 10A Discharge SYNC Charge up to 2x7S for max 14S Flightpacks at 1000W max total. See explanation of SYNC MODE charging below. * High Balance Circuit Resolution for superb accuracy * Built-In USB DataPort and supplied USB cable * Hardware support for EOS Control & Data Suite PC Software * 20 Memory slots for batteries per port (40 total) * CYCLE mode for LiFePO4 and LiPo NOW with v5.94 Firmware for HVLI 3.8V/cell Mode, for the awesome new Hyperion G6 HvLi Packs!

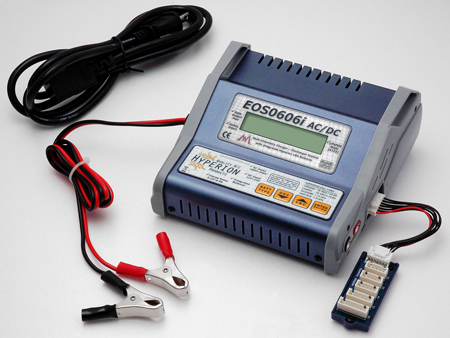

DUAL-INPUT CONVENIENCE EOS 0606i AD-B AC/DC Input - 6A/6S with 50W Max. The 0606i AC/DC is one of the most popular chargers in the RC world. Easily transportable, and ready for DC or AC input sources. A great pick for models using small~medium capacity packs or those who don't need the super-fast charge abilities of the NET & DUO series.

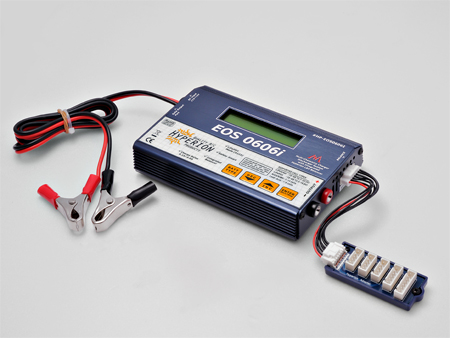

COMPACT and VALUE-PRICED EOS 0606i DC Input - 6A/6S with 50W Max. The little brother to the 0606i AC/DC, with same charge and discharge features. The 0606i DC is a value performer good for field charging, or at home using an inexpensive AC>DC power supply of 12V~15V and 75~100W.

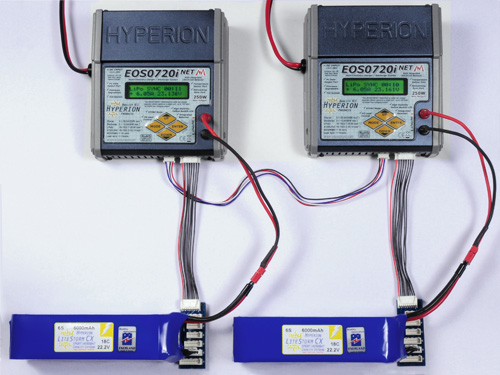

	The two original EOS 0070iNET chargers at left are shown working together to SYNC charge a 5350mAh 12S flightpack (2x 6S packs, to be connected in series before flight). Two EOS 0720i NET3 Networked can supply max rates of 20A with 500W limit total, and can charge up to 2x 7S for 14-cell series flight-packs! It's the most powerful big-pack charger solution under $1600 on the market today, but the two 0720i together cost less than $400! As long as the two packs are the same brand, capacity, and have similar usage histories, the NET and DUO chargers can SYNC Charge any two separate packs to make a series-wired flight pack. For example 2S+2S=4S, 3S+4S=7S, 5S+4S=9S, etc... Note that the DUO line can charge a single pack per port up to 6S, and can separately SYNC Balance Charge two similar packs to make a "flight pack" of up to 12S. You CANNOT charge a single "unit"* pack greater than 6S using one or both DUO ports no matter the wiring. Note that v3.2 firmware for NET and DUO add a Terminal Voltage Control setting (TVC), intended ONLY for expert users and racers, completely at their own risk, which allows LIPO and LIFE packs to be charged in excess of recommended cell terminal voltages. See manuals for more details.

USER MANUALS FOR CHARGERS RECENTLY IN PRODUCTION -- EOS 0403i Manual EOS 0403i Screen Flow Charts -- EOS 0606I-B (dc) Manual with flow charts -- EOS 0606I AD-B (ac/dc) Manual with flow charts All NET3, DUO3, and SDUO3 use a unified manual -- Manual (v4.6+ firmware, v5.94 updated manual coming soon) Screen Flow Charts [these are also for 0610-DUO2 and 0720i-NET (2) with firmware 4.2+] USER MANUALS FOR CHARGERS NO LONGER IN PRODUCTION -- EOS 0606I (dc) Manual with flow charts -- EOS 0606I AD (ac/dc) Manual with flow charts -- EOS 0606I AD-A (ac/dc) Manual with flow charts -- EOS 0610i NET Manual EOS 0610i NET Screen Flow Charts -- EOS 0610i DUO Manual EOS 0610i DUO Screen Flow Charts -- EOS 0610i NET&DUO Manual Update for v2.0 Firmware -- EOS 0610i DUO2 Manual (includes v1.2 firmware changes) EOS 0610i DUO2 Screen Flow Charts (includes v1.2 firmware changes) YOU MUST READ this TVC Setting Documentation if upgrading to v3.2+ Firmware!! -- EOS 0720i NET (2) Manual (includes v1.2 firmware changes) EOS 0720i NET Screen Flow Charts (includes v1.2 firmware changes) YOU MUST READ this TVC Setting Documentation if upgrading to v3.2 Firmware!! MANUALS are in Adobe Acrobat format, and require Acrobat reader (free download) HYPERION FIRMWARE, SOFTWARE, AND CONNECTIVITY INDEX rights reserved Hyperion HK Ltd. 2006
